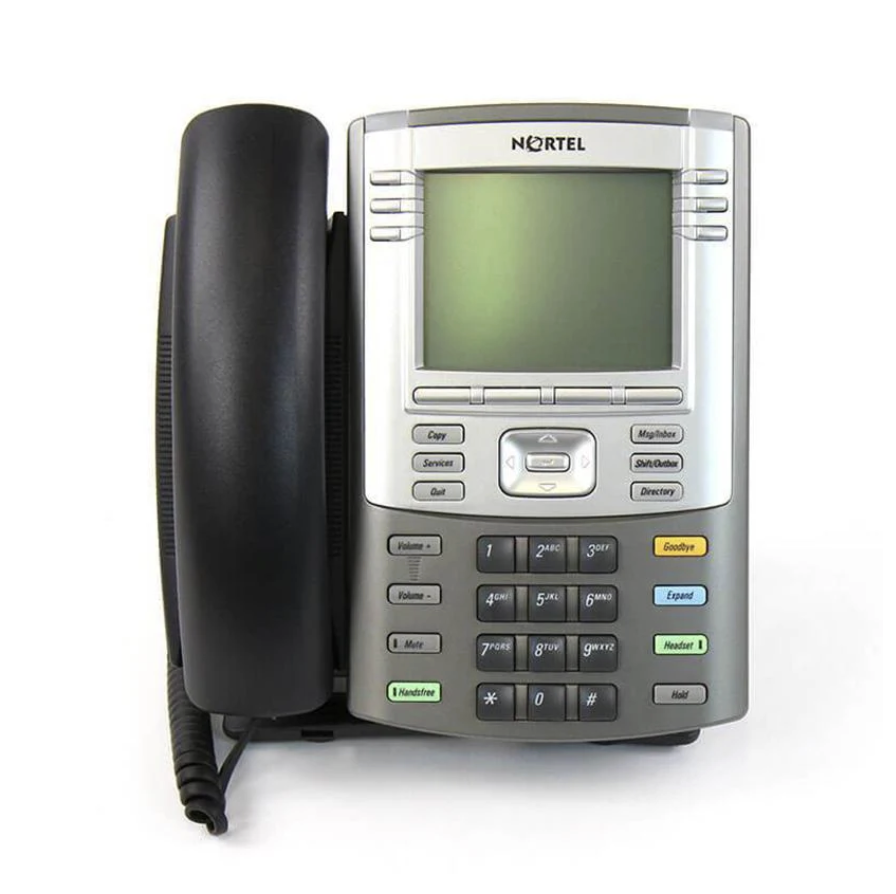

Nortel 1140E IP Phone (NTYS05)

The Nortel 1140E IP Phone (NTYS05) is an enterprise-class multi-line VoIP telephone designed for managers, knowledge workers, and business professionals who require advanced communications capabilities. Featuring Gigabit Ethernet connectivity, Bluetooth technology, USB support, and a high-resolution graphical display, the 1140E brings voice and data applications directly to the desktop.

With SIP protocol support and compatibility with both Nortel and third-party VoIP platforms, the Nortel 1140E delivers a flexible and scalable communications solution for modern business environments.

Features

• Multi-line IP phone
• High-resolution 240 x 160 pixel monochrome backlit LCD display
• 14 fixed feature keys
• 4 programmable soft keys
• Navigation cluster
• Gigabit Ethernet connectivity
• USB port
• Bluetooth wireless technology
• Call recording support
• Headset support
• SIP protocol support
• Field-upgradable firmware via TFTP
• Includes 1-Year Warranty

Specifications

• Display:
  • 240 x 160 Pixel Monochrome Backlit LCD
• Phone Type:
  • Multi-Line IP Phone
• Keys:
  • 14 Fixed Feature Keys
  • 4 Soft Keys
• Navigation:
  • Navigation Cluster
• Connectivity:
  • Gigabit Ethernet
  • USB Port
  • Bluetooth Wireless Technology
• Audio:
  • Headset Compatible
  • Echo Cancellation Support
  • Call Recording Support
• Protocols:
  • SIP
  • E.164 Dialing
• Codecs:
  • G.711a/u
  • G.729a/b
  • G.722 Wideband Audio
• Power:
  • IEEE 802.3af Power over Ethernet (PoE)
  • Optional Local AC Power Supply (Sold Separately)
• Color:
  • Graphite with Silver Bezel
• Dimensions:
  • 7.9″ x 7.4″ x 8.1″
• Weight:
  • 2.47 lbs.

Key Calling Features

• Multi-Line VoIP Communications
• SIP Telephony Support
• Bluetooth Connectivity
• Call Recording Support
• Headset Connectivity
• USB Device Support
• Display-Based Call Management
• Directory Access
• Voice and Data Application Support

Display and Productivity Features

The high-resolution graphical display provides users with convenient access to:

• Call Information
• Directory Listings
• System Messages
• Feature Menus
• User Settings
• Voice and Data Applications

The navigation cluster and soft keys make it easy to manage calls and access business applications.

Bluetooth and USB Support

The Nortel 1140E supports:

• Bluetooth Wireless Technology
• Standard USB Keyboards
• Standard USB Mice
• USB Accessories

These features provide greater flexibility and improve navigation and user productivity.

Network and Audio Features

Advanced communications capabilities include:

• Gigabit Ethernet Connectivity
• Wideband Audio (G.722)
• Echo Cancellation
• Bluetooth Headset Support
• USB Peripheral Support
• Call Recording Functionality

These features make the 1140E ideal for professionals who spend significant time on the phone.

Compatibility

Compatible with:

• Nortel Communication Server 1000
• Nortel Communication Server 2000
• Nortel Communication Server 2100
• Nortel Business Communications Manager (BCM) 50
• Nortel Business Communications Manager (BCM) 200
• Nortel Business Communications Manager (BCM) 400
• Nortel Survivable Remote Gateway (SRG) 50
• Nortel Survivable Remote Gateway (SRG) 200
• Nortel Survivable Remote Gateway (SRG) 400
• Nortel Media Gateway 1000B Expansion Chassis
• Nortel Multimedia Communication Server 5100
• Nortel Multimedia Communication Server 5200

Ideal Applications

The Nortel 1140E IP Phone is ideal for:

• Managers
• Knowledge Workers
• Administrative Staff
• Office Professionals
• Customer Service Teams
• Healthcare Facilities
• Educational Institutions
• Government Offices
• Professional Services Firms
• Enterprise Environments

Why Choose the Nortel 1140E IP Phone?

The Nortel 1140E combines advanced VoIP functionality, Gigabit Ethernet, Bluetooth connectivity, USB support, and SIP compatibility in a powerful enterprise desktop phone. Its graphical display, wideband audio, and application support make it an excellent choice for users who need more than basic business telephony.

For organizations operating Nortel VoIP infrastructure, the 1140E remains one of the most versatile and feature-rich IP phones available.

Professionally Refurbished and Tested

Each Nortel 1140E IP Phone (NTYS05) is professionally refurbished, cleaned, tested, and inspected to help ensure reliable performance and functionality.

Package Includes

• Nortel 1140E IP Phone (NTYS05)
• 1-Year Warranty

Related Products

Browse our selection of Nortel IP phones, VoIP telephones, replacement handsets, accessories, and business communications equipment.

Documentation

Need setup and operating instructions for the Nortel 1140E IP Phone?

Download the Avaya / Nortel 1140E Datasheet for detailed specifications and operating information.
