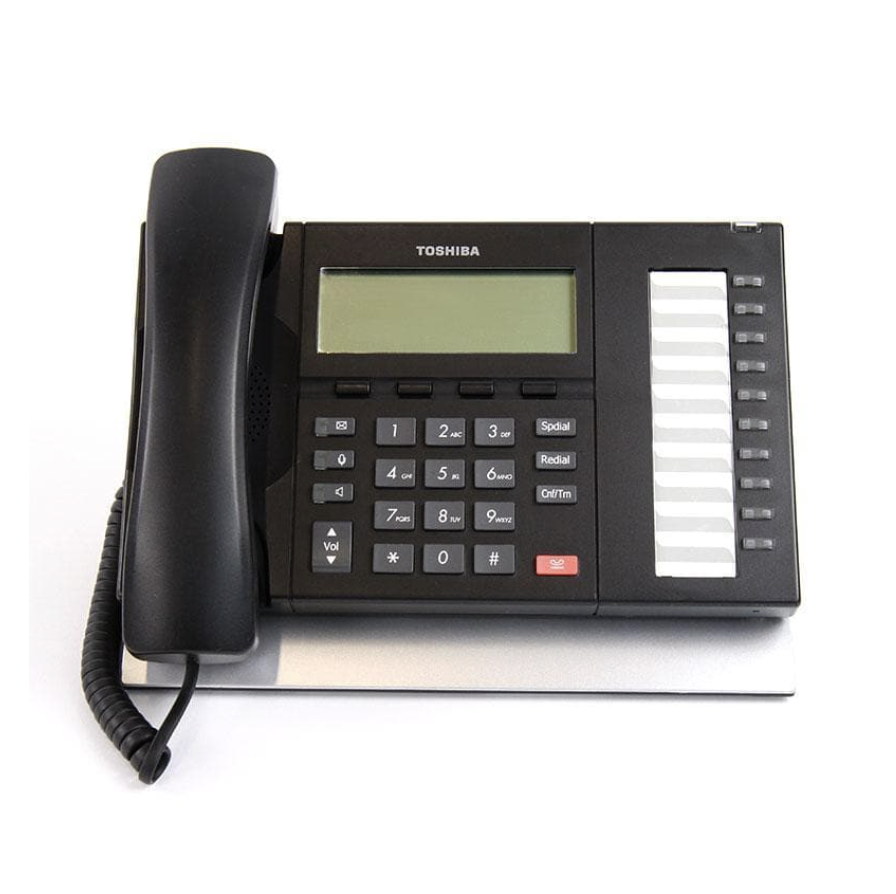

Toshiba IP5022-SD IP Phone

The Toshiba IP5022-SD IP Phone is a full-featured business communications device designed to provide reliable VoIP connectivity, advanced call handling capabilities, and seamless integration with Toshiba Strata CIX systems. Featuring a large 4-line LCD display, programmable feature keys, Gigabit Ethernet connectivity, and a full-duplex speakerphone, the IP5022-SD is ideal for office professionals, managers, administrative staff, and customer service teams.

As part of the Toshiba IP5000 Series, the IP5022-SD simplifies business communications by providing quick access to frequently used features and advanced calling functions. The large LCD display provides clear visibility of call information and system features, while four dynamic soft keys allow users to easily navigate menus and access available functions.

The phone includes 10 programmable feature buttons with LED indicators that can be configured for line appearances, speed dials, extensions, and custom system functions. Dedicated feature keys provide one-touch access to message retrieval, microphone control, speakerphone operation, speed dialing, redial, conferencing, call transfer, hold, and volume adjustment.

For hands-free communications, the IP5022-SD features a full-duplex speakerphone and an integrated headset interface. A built-in Gigabit Ethernet switch allows both the phone and a connected PC to share a single network connection, helping simplify desktop cabling requirements.

The phone supports Power over Ethernet (PoE) for streamlined deployment and can also be powered by an optional PoE injector or Toshiba auxiliary power supply. Designed specifically for Toshiba Strata CIX environments, the IP5022-SD delivers the flexibility, performance, and reliability required for modern business communications.

Features

Large 4-line LCD display
Four dynamic soft keys
10 programmable feature buttons with LED indicators
Full-duplex speakerphone
Integrated headset interface
Built-in Gigabit Ethernet switch
Hands-free operation
One-touch access to advanced calling features
Power over Ethernet (PoE) support
Compatible with Toshiba Strata CIX systems
Includes 1-Year Warranty

Specifications

Phone Type:
- IP Phone
Display:
- 4-Line LCD Display
Soft Keys:
- 4 Dynamic Soft Keys
Programmable Keys:
- 10 Programmable Feature Buttons
- LED Status Indicators
Fixed Feature Keys:
- Message
- Microphone
- Speaker
- Speed Dial
- Redial
- Conference/Transfer
- Hold
- Volume Up/Down
Audio:
- Full-Duplex Speakerphone
- Integrated Headset Interface
Network:
- Built-In 10/100/1000 Gigabit Ethernet Switch
Power:
- IEEE 802.3af Power over Ethernet (PoE)
- Optional PoE Injector
- Optional Toshiba LADP2000-3A Power Supply

Compatibility

Compatible with:

Toshiba Strata CIX Systems running Release 5.2 or later

System Requirements:

Uses 1 channel on MIPU or LIPU/LIPS (Strata CIX100/200/670)
Uses 1 channel on GIPU8, MIPU, or GIPH (Strata CIX40)
Requires IP Endpoint License (not included)

Please verify system compatibility and licensing requirements before deployment.

Ideal Applications

Office Professionals
Managers
Administrative Staff
Customer Service Teams
Healthcare Facilities
Educational Institutions
Small Businesses
Enterprise Offices

Includes
