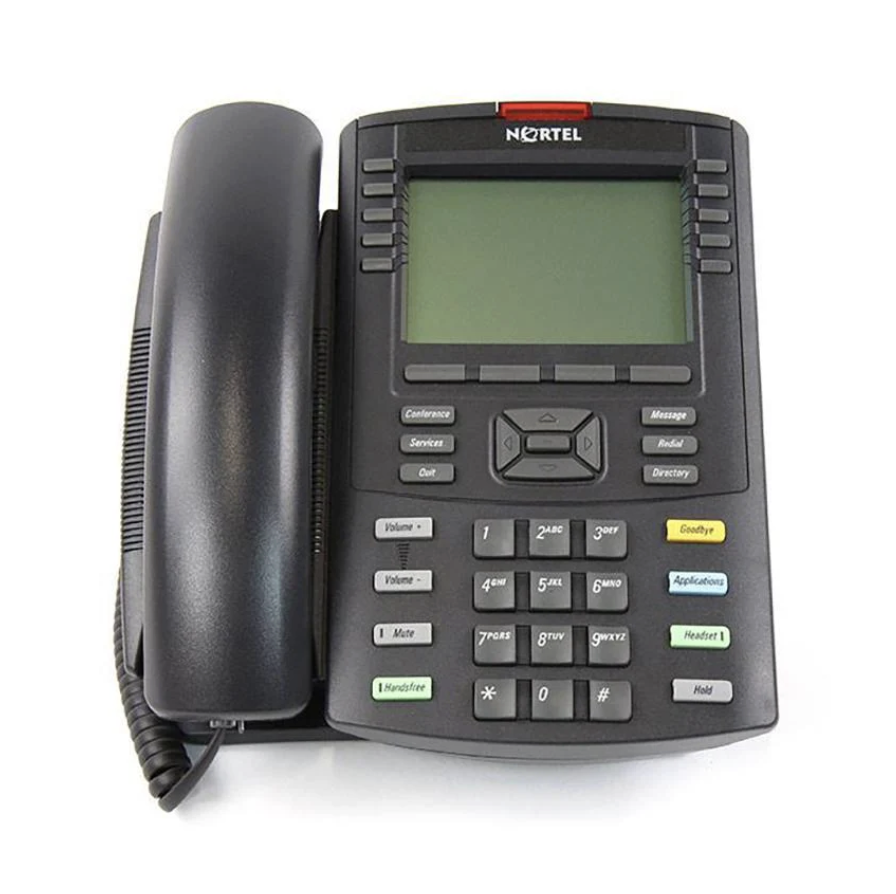

Nortel 1230 IP Phone (NTYS20BC70E6)

The Nortel 1230 IP Phone (NTYS20BC70E6) is a powerful multi-line VoIP business phone designed for professionals who require advanced communications capabilities. Featuring a large LCD display, SIP support, headset compatibility, and expansion module support, the 1230 is ideal for managers, administrative assistants, knowledge workers, and other users who handle a high volume of calls.

Built for small and medium-sized businesses, the Nortel 1230 combines flexibility, productivity, and reliability in a professional desktop IP phone.

Features

• Multi-line IP phone
• 9-line x 25-character monochrome LCD display
• 14 fixed telephony keys
• 4 soft keys
• Navigation cluster
• SIP support
• Headset support
• Expansion module support
• Dual Ethernet ports
• Power over Ethernet (PoE) support
• Includes 1-Year Warranty

Specifications

• Display:
  • 9-Line x 25-Character Monochrome LCD
• Phone Type:
  • Multi-Line IP Phone
• Keys:
  • 14 Fixed Telephony Keys
  • 4 Soft Keys
• Navigation:
  • Navigation Cluster
• Connectivity:
  • Dual-Port 10/100 Ethernet (LAN and PC)
• Audio:
  • Headset Compatible
• Protocols:
  • SIP
• Codecs:
  • G.711a/u
  • G.729a/b
  • G.723.1
• Power:
  • IEEE 802.3af Power over Ethernet (PoE)
  • Optional Local AC Power Supply (Sold Separately)
  • Nortel Approved 48VDC, 0.52A
• Dimensions:
  • 8.1″ x 7.8″ x 7.5″
• Weight:
  • 1.9 lbs.

Key Calling Features

• Multi-Line VoIP Communications
• SIP Telephony Support
• Headset Connectivity
• Soft Key Navigation
• Directory Access
• Extension Management
• Advanced Call Handling
• Business Communications Features

Display and Productivity Features

The large 9-line display provides users with quick access to:

• Call Information
• Directory Listings
• System Menus
• User Prompts
• Feature Settings
• Extension Information

The expanded display area improves visibility and allows users to manage calls and features more efficiently.

Expansion Module Support

The Nortel 1230 IP Phone supports compatible expansion modules, making it ideal for users who require additional programmable keys.

Expansion modules can be used for:

• Speed Dial Access
• Line Appearances
• Busy Lamp Field (BLF) Monitoring
• Extension Monitoring
• Feature Activation
• Reception and Administrative Functions

Network Connectivity

The integrated dual-port Ethernet switch allows both the IP phone and a desktop PC to share a single network connection.

Benefits include:

• Reduced cabling requirements
• Easier workstation deployment
• Lower installation costs
• Efficient network connectivity

Compatibility

Compatible with:

• Nortel Communication Server 1000
• Nortel Business Communications Manager (BCM) 50
• Nortel Business Communications Manager (BCM) 450

Ideal Applications

The Nortel 1230 IP Phone is ideal for:

• Managers
• Administrative Assistants
• Knowledge Workers
• Executives
• Office Professionals
• Customer Service Teams
• Reception Areas
• Healthcare Facilities
• Government Offices
• Small and Medium-Sized Businesses

Why Choose the Nortel 1230 IP Phone?

The Nortel 1230 IP Phone delivers advanced VoIP communications, a large display, expansion flexibility, and professional-grade functionality for users who require more power than entry-level business phones. Its combination of SIP support, headset compatibility, and expansion module support makes it a reliable solution for demanding office environments.

For organizations using Nortel IP telephony systems, the 1230 remains a trusted and scalable business communications platform.

Professionally Refurbished and Tested

Each Nortel 1230 IP Phone (NTYS20BC70E6) is professionally refurbished, cleaned, tested, and inspected to help ensure reliable performance and functionality.

Package Includes

• Nortel 1230 IP Phone (NTYS20BC70E6)
• 1-Year Warranty

Related Products

Browse our selection of Nortel IP phones, VoIP telephones, expansion modules, replacement handsets, accessories, and business communications equipment.

Documentation

Need setup and operating instructions for the Nortel 1230 IP Phone?

Download the Nortel 1230 User Guide for detailed information on installation, programming, and operation.
