avaya jem24 expansion module (700514337)
, ,

Avaya JEM24 Expansion Module (700514337)

The Avaya JEM24 Expansion Module (700514337) adds 24 programmable buttons with integrated displays and LED indicators to compatible Avaya J169 and J179 IP phones for enhanced productivity and call handling.

Categories: , , Brand:

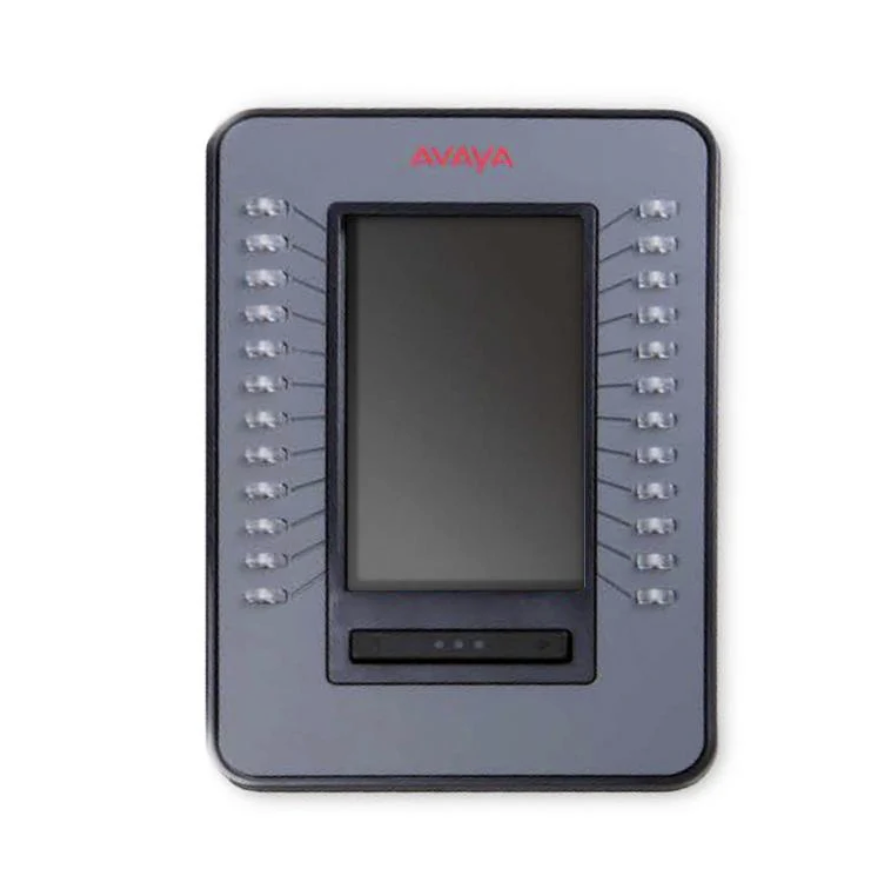

Avaya JEM24 Expansion Module (700514337)

The Avaya JEM24 Expansion Module (700514337) is a premium expansion module designed to increase the functionality of compatible Avaya J169 and J179 IP phones. Featuring 24 programmable feature and line buttons with integrated displays and status indicators, the JEM24 provides immediate access to extensions, speed dials, call appearances, and business features without requiring users to scroll through menus.

Ideal for receptionists, executive assistants, operators, managers, and other high-call-volume users, the JEM24 improves productivity by placing frequently used communications tools directly at the user’s fingertips.

Note: JEM24 support requires J100 SIP Software Release 4.0 or later, or Deskphone H.323 Software Release 6.8 or later.

Features

  • 24 programmable feature and line buttons
  • Red and green LED status indicators for each button
  • Color display when connected to Avaya J179
  • Grayscale display when connected to Avaya J169
  • Brightness adjustable through the connected phone
  • Supports call appearances, speed dials, extensions, and feature access
  • User-configurable button assignments
  • Background and screensaver synchronization when used with supported SIP software
  • Supports up to three JEM24 modules per phone
  • Powered directly from the host phone
  • Professionally tested
  • Warranty included

Compatibility

Compatible with:

  • Avaya J169 Gigabit IP Phone (700513634)
  • Avaya J179 Gigabit IP Phone (700513569)

Software Requirements

  • J100 SIP Software 4.0 or later
  • Deskphone H.323 Software 6.8 or later

Important Power Requirements

  • Powered by the connected J169 or J179 IP phone
  • Connecting a JEM24 increases PoE requirements to Class 2
  • J179 phones using two or three JEM24 modules simultaneously require an optional AC power adapter (sold separately)

Specifications

  • Manufacturer: Avaya
  • Model: JEM24 Expansion Module
  • Part Number: 700514337
  • Product Type: Expansion Button Module
  • Programmable Buttons: 24
  • Status Indicators: Red and Green LEDs
  • Display Type:
    • Color Display (J179)
    • Grayscale Display (J169)
  • Maximum Modules Supported: 3 Per Phone
  • Warranty: Included

Why Choose the Avaya JEM24 Expansion Module?

The Avaya JEM24 is designed for users who require additional programmable buttons and visual status information beyond what is available on the base phone. By adding 24 configurable buttons with integrated displays, users can quickly access extensions, speed dials, call appearances, and frequently used features.

For receptionists, administrative teams, executives, and operators who manage large call volumes, the JEM24 provides a more efficient and productive communications experience while reducing the need to navigate on-screen menus.

Professionally Tested

Each Avaya JEM24 Expansion Module (700514337) is professionally tested to help ensure reliable performance and compatibility with supported Avaya phone systems.

Related Products

Looking for additional Avaya phone system equipment? Browse our selection of Avaya J-Series phones, J169 IP phones, J179 IP phones, replacement handsets, power supplies, wall mounts, and telecom system components.

Documentation

Need setup and operating instructions for the Avaya JEM24 Expansion Module (700514337)?

Download the User Guide for detailed information on installation, programming, button assignments, and system operation.

Download Avaya JEM24 User Guide (PDF)
