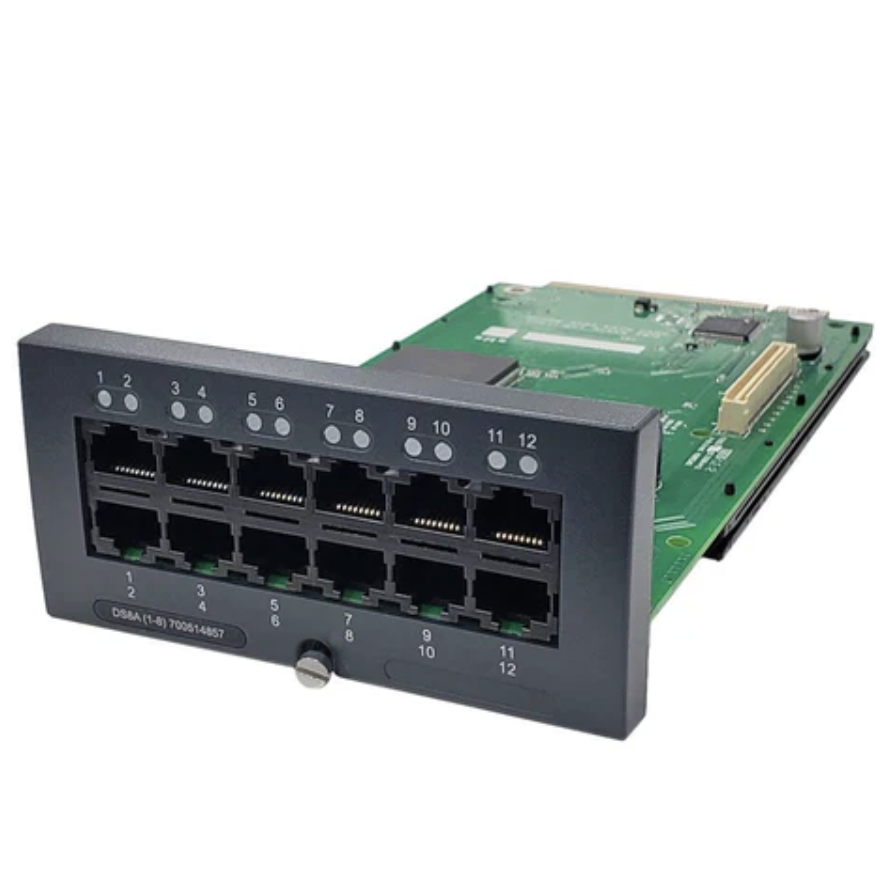

Avaya IP500 Digital Station 8A Base Card (700514857)

The Avaya IP500 Digital Station 8A Base Card (700514857) is a digital station expansion card designed for Avaya IP500 V2 and IP500 V2A Control Units running IP Office Release 11.1 or later. The card provides eight digital station ports for connecting compatible Avaya digital telephones and can be expanded with an optional daughter card to support additional devices.

Designed for modern Avaya IP Office deployments, the Digital Station 8A Base Card supports both legacy and current-generation Avaya digital telephones, making it an ideal solution for organizations expanding or upgrading their communications infrastructure.

Features

8 digital station (DS) ports
12 RJ45 ports total
Supports compatible Avaya digital telephones
Optional IP500 daughter card support
Expandable by up to 4 additional ports
Power failure transfer support
Supports up to 4 cards per control unit
Designed for IP Office Release 11.1 and later
Easy integration with Avaya IP Office systems
Professionally tested
Warranty included

Port Configuration

RJ45 Ports: 12
Digital Station Ports: 8
Additional Ports via Daughter Card: Up to 4

Compatibility

Control Unit Compatibility

Avaya IP500 V2 Control Unit
Avaya IP500 V2A Control Unit

Software Requirements

IP Office Release 11.1 or later

Digital Telephone Compatibility

Avaya 1400 Series Digital Phones
Avaya 2400 Series Digital Phones
Avaya 9500 Series Digital Phones

Specifications

Manufacturer: Avaya
Model: IP500 Digital Station 8A Base Card
Part Number: 700514857
Product Type: Digital Station Expansion Card
Digital Station Ports: 8
RJ45 Ports: 12
Expansion Support: Optional Daughter Card
Maximum Cards Per System: 4
Power Failure Transfer: Yes
Warranty: Included

Why Choose the Avaya IP500 Digital Station 8A Base Card?

The Avaya IP500 Digital Station 8A Base Card provides a flexible and scalable solution for expanding digital telephone capacity within an Avaya IP Office system. With support for both legacy and newer Avaya digital phone series, it allows organizations to extend the life of existing equipment while supporting future growth.

Its ability to support up to four cards per system and optional port expansion makes it an excellent choice for businesses requiring additional digital extensions without investing in a completely new communications platform.

Professionally Tested

Each Avaya IP500 Digital Station 8A Base Card (700514857) is professionally tested to help ensure reliable performance and compatibility with supported Avaya IP Office systems.
